VPG Buildwell - 705 D Concrete Mixer Machine

Concrete Mixer Machines

123705 D Concrete Mixer Machine

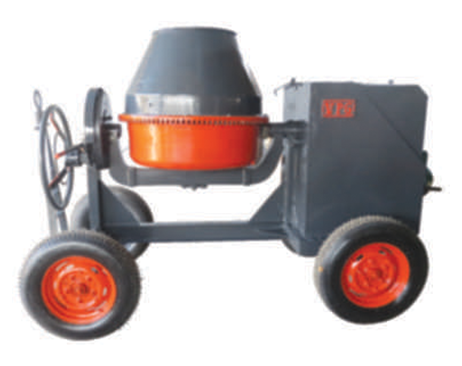

705 D Concrete Mixer Machine

Specification
Batch Capacity 7/5 CFT (200/150Litres)
Output/mix (or) hr 0.11 cub. mtr. / mix (or) 3.3 cub. mtr. / hr
Power 6HP Air-Cooled Diesel Engine (or) 3HP Electric Motor
Chassis Heavy duty, Robust Steel Chassis
Mixing Drum

Speed 20-22RPM
Material Cast Iron
Cone Mild Steel
Wheels Retread Tyre with used disc, hub and bearing (or) Cast Iron Wheels
DIMENSIONS
Length 2600mm
Width 1300mm
Height 1830mm
Weight 750Kgs (Approx)
