VPG Buildwell - 107 NMD Concrete Mixer Machine

Concrete Mixer Machines

123107 NMD Concrete Mixer Machine

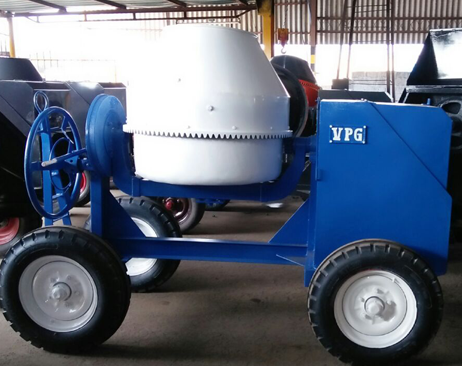

107 NMD Concrete Mixer Machine

Specification
Batch Capacity 10/7 CFT (300/200Litres)
Output/mix (or) hr 0.15 cub. mtr. / mix (or) 4 cub. mtr. / hr
Power 6HP Air-Cooled Diesel Engine (or) 5HP Electric Motor
Chassis Light duty, Robust Steel Chassis
Mixing Drum
Speed 20-23RPM
Material Cast Iron
Cone Mild Steel
Mixing Time 180seconds Approx
Wheels Retread Tyre with used disc, hub and bearing (or) Cast Iron Wheels
Dimensions
Length 2570mm
Width 1270mm
Height 1730mm
Weight 950kgs (Approx)
