VPG Buildwell - 18cub.mtr Mobile Batching Plant

Concrete Batching Plant

12318cub.mtr Mobile Batching Plant

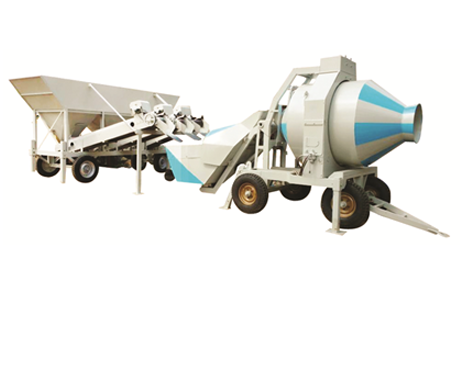

18cub.mtr Mobile Batching Plant

Specification
Output 10- 15 cub. mtr. / hr
Electric Motor (Mixer) 17 HP (Concrete Mixer) + 9.5HP(3 Bin Feeder) + 12.5HP (Screw Feeder)
Total Power installed 35 HP
Water System Automatic Water system
Aggregate bins capacity 2 cub.mtr for each bins
Aggregate Feeding System Automatic Belt Conveyor system
Cement Feeding System Screw conveyor type option
Storage Option Two thousand batch storage, Printing facility
Dimensions
Length 5020mm
Width 2200mm
Height 2850mm
Key Feature
  • Positive Drive System
  • Easy to operate
  • Quick Installation
  • Suitable for site mix
  • To produce Quality concrete
